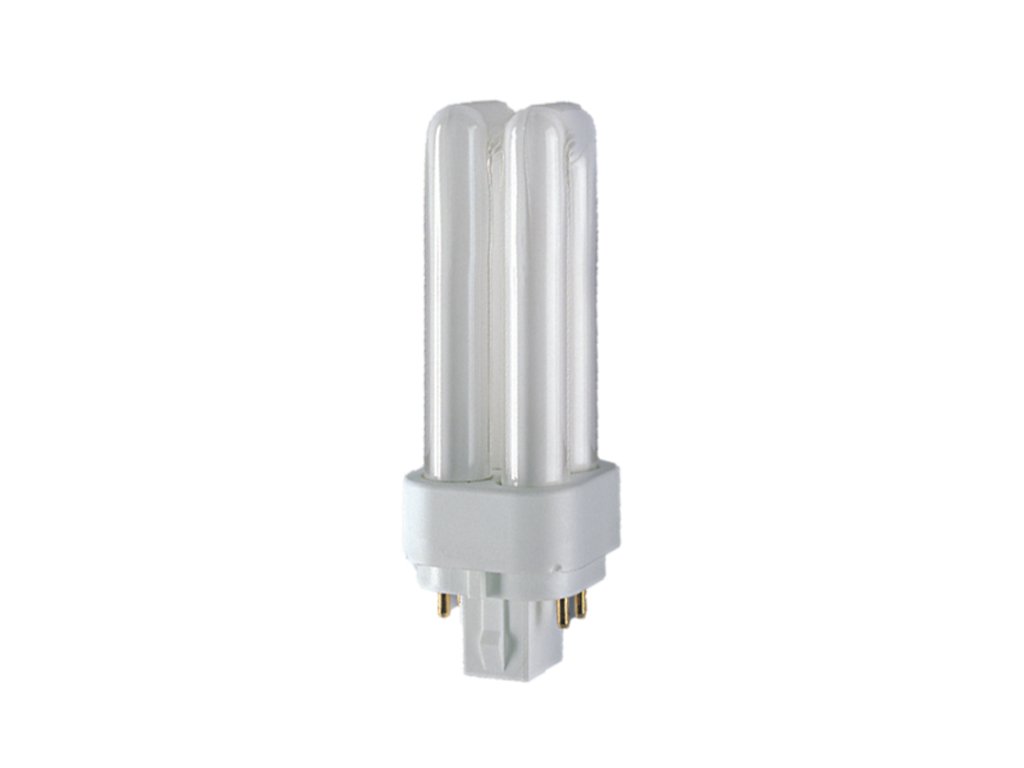

RX-D/E 18W 840 4P G24Q 1200Lm 4000K (náhrada za PL-C 18W 840 4P) Úsporná žárovka Ralux duo/E Radium
Kód: 4008597130571 / 4008597430572 RX-DE 18W 840 4P G24QDetailní popis produktu
TYP SVĚTELNÉHO ZDROJE
Použitý typ světelného zdroje
CFLni
Nesměrový nebo směrový
Nesměrový
Typ patice světelného zdroje (nebo jiné elektrické rozhraní)
G24q
Síťový nebo nesíťový
Nesíťový
Propojený světelný zdroj (CLS)
Ne
Barevně laditelný světelný zdroj
Ne
Světelný zdroj s vysokým jasem
Ne
Clona proti oslnění
Ne
Stmívatelný
Ano
OBECNÉ PARAMETRY VÝROBKU
Spotřeba energie v zapnutém stavu
19kWh / 1 000 h
Užitečný světelný tok
1 200lm
Úhel poloviční svítivosti odpovídá
Všesměrový (360°)
Náhradní teplota chromatičnosti
4 000K
Příkon v zapnutém stavu
18,7W
Příkon v pohotovostním režimu
0,00W
Index podání barev
80
Vnější rozměry
146(Výška) x 27(Šířka) x 27(Hloubka)mm
Údaj o rovnocenném příkonu
Ne
Trichromatická souřadnice
x: 0,380 y: 0,380
Spektrální složení zářivého toku v rozmezí 250 nm až 800 nm při plném výkonu
-
- Phase-in, product in launch phase
- Active, current product
- Phase-out product, while stocks last
- Inactive, product no longer available
" data-once="info-circle" data-original-title="" title="" style="box-sizing: border-box; align-content: center; align-items: center; display: inline-flex !important; cursor: pointer;">InactiveTo product
General Data
31313057
RX-D/E 18W/840/G24Q
4008597130571
10
4008597430572
0.57
0.187
0.081
0.175
38 g
- Phase-in, product in launch phase
- Active, current product
- Phase-out product, while stocks last
- Inactive, product no longer available
" data-once="info-circle" data-original-title="" title="" style="box-sizing: border-box; align-content: center; align-items: center; display: inline-flex !important; cursor: pointer;">Phase Out
Electric Parameters
18.7 W
18 W
19 kWh
100 V
230 V
Yes
Light Application Parameters
1200 lm
1200 lm
25 °C
64 lm/W
white
840
4000 K
0.380
0.380
? 80
4.5
0.90
0.84
0.83
0.81
0.79
0.78
0.77
Service Life
12000 h
20000 h
0.99
0.99
0.99
0.99
0.95
0.81
0.50
Specification
current label, with EPREL registration
G
27 mm
146 mm
146 mm
146 mm
1.4 mg
G24q-2
White
Notes on Operation
-5 … +40 °C
Information especially for EPREL
current label, with EPREL registration
541216
Miscellaneous
25.02.2023
RoHS
Notes
Base
G24q
IEC/EN 60061-1
sheet 7004-78-5
Spectrum
Natural daylight is a mixture of direct sunlight and the light of the sky. Therefore, its spectral composition changes permanently due to the changing time of day. The standardised light classification D65 corresponds to a daylight with a colour temperature of approximately 6500 K.
Every fluorescent lamp type has got an individual spectral power distribution according to its phosphor coating inside the bulb. From this result important properties light colour or colour rendering.
Visible region from 380 to 780 nm; height of graph corresponding with relative spectral emission (400mW/klm) per 10nm.
light colour 840 Spectralux® white (21)
daylight(D 65)
Special features
General notes
The technical design data in accordance with DIN and IEC. The producer does not take any responsibility for damage to persons or property in case of unsuitable operation or handling of the product. Operating data and dimensions are valid within the usual tolerances. Related lamp types (different bases, mains voltages) may be available on request. Sale and delivery are effected in accordance with the Radium Terms of Delivery and Payment valid on the day of conclusion of contract. Packing units offer economical advantages to the purchase and logistic department. Please match your quantity volume accordingly. For orders of a minimum quantity (clefts) with a lamp model the amount lower than the volume of each packaging unit, we will invoice 10 % additional charge per lamp type. Technical changes and terms of delivery are reserved. Manipulation of any kind to packaging or product is not permissible as this will violate Radium brand rights. Furthermore, technical properties of the product can change to its disadvantage or even destruction. Therefore, Radium cannot be responsible for consequential damages.
® = Registered trademark
Subject to change without notice. Errors and omissions excepted.
- Phase-in, product in launch phase
- Active, current product
- Phase-out product, while stocks last
- Inactive, product no longer available
General Data
- Phase-in, product in launch phase
- Active, current product
- Phase-out product, while stocks last
- Inactive, product no longer available
Electric Parameters
Light Application Parameters
Service Life
Specification
Notes on Operation
Information especially for EPREL
Miscellaneous
Notes
Base
G24q
IEC/EN 60061-1
sheet 7004-78-5
Spectrum
Natural daylight is a mixture of direct sunlight and the light of the sky. Therefore, its spectral composition changes permanently due to the changing time of day. The standardised light classification D65 corresponds to a daylight with a colour temperature of approximately 6500 K.
Every fluorescent lamp type has got an individual spectral power distribution according to its phosphor coating inside the bulb. From this result important properties light colour or colour rendering.
Visible region from 380 to 780 nm; height of graph corresponding with relative spectral emission (400mW/klm) per 10nm.
light colour 840 Spectralux® white (21)
daylight(D 65)
Special features
General notes
The technical design data in accordance with DIN and IEC. The producer does not take any responsibility for damage to persons or property in case of unsuitable operation or handling of the product. Operating data and dimensions are valid within the usual tolerances. Related lamp types (different bases, mains voltages) may be available on request. Sale and delivery are effected in accordance with the Radium Terms of Delivery and Payment valid on the day of conclusion of contract. Packing units offer economical advantages to the purchase and logistic department. Please match your quantity volume accordingly. For orders of a minimum quantity (clefts) with a lamp model the amount lower than the volume of each packaging unit, we will invoice 10 % additional charge per lamp type. Technical changes and terms of delivery are reserved. Manipulation of any kind to packaging or product is not permissible as this will violate Radium brand rights. Furthermore, technical properties of the product can change to its disadvantage or even destruction. Therefore, Radium cannot be responsible for consequential damages.
® = Registered trademark
Subject to change without notice. Errors and omissions excepted.
