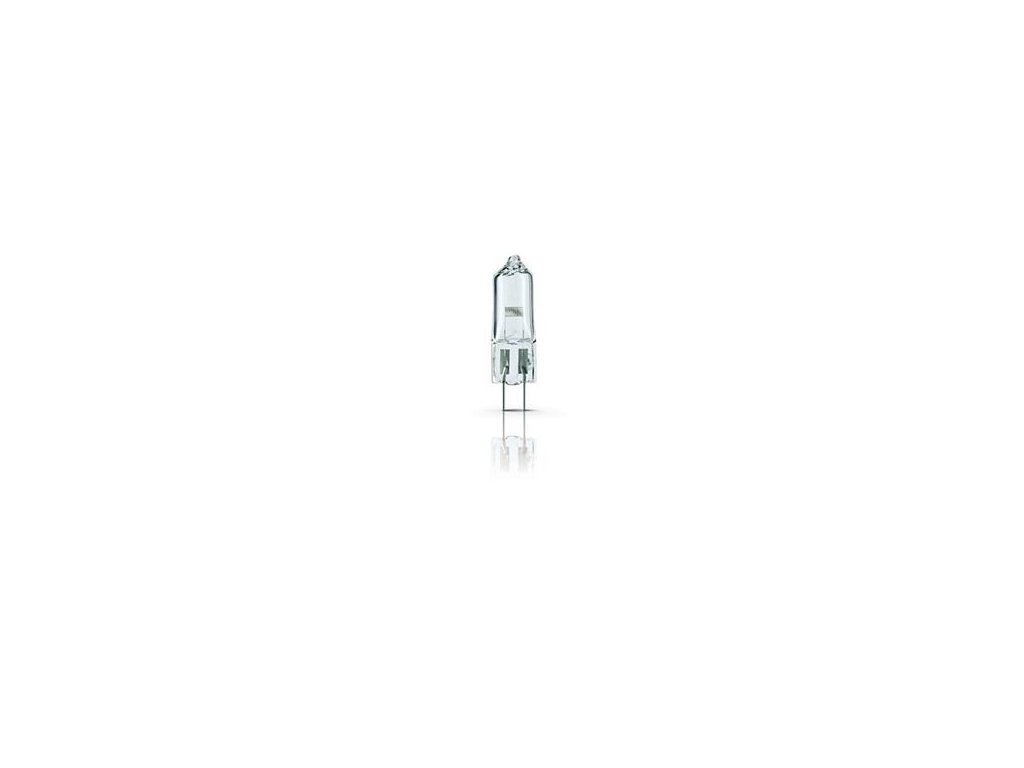

7027 50W G6,35 12V BRL A1/220 Philips

Detailní popis produktu

• General Characteristics
Philips Code 7027
ANSI Code BRL/BCD
LIF Code A1/220
Cap-Base G6.35
Bulb Material Quartz-UV Open
Filament Shape Flat
Operating Position s90
Main Application Projection
Life to 50% failures 50 hr
• Electrical Characteristics
Lamp Wattage 50 W
Voltage 12 V
• Light Technical Characteristics
Color Rendering
Index
100 Ra8
Color Temperature
Technical
3300 K
Luminous Flux Lamp 1500 Lm
• Product Dimensions
Overall Length C 44 (max) mm
Diameter D 11.5 (max) mm
Light Center Length
L
29.75 (min), 30 (nom), 30.25 (max)
mm
Pin Diameter P 0.95 (min), 1 (nom), 1.05 (max) mm
Filament Dimensions
(WxH) [mm]
3.3x1.6
• Luminaire Design Requirements
Pinch Temperature 400 (max) C
Bulb Temperature 900 (max) C
