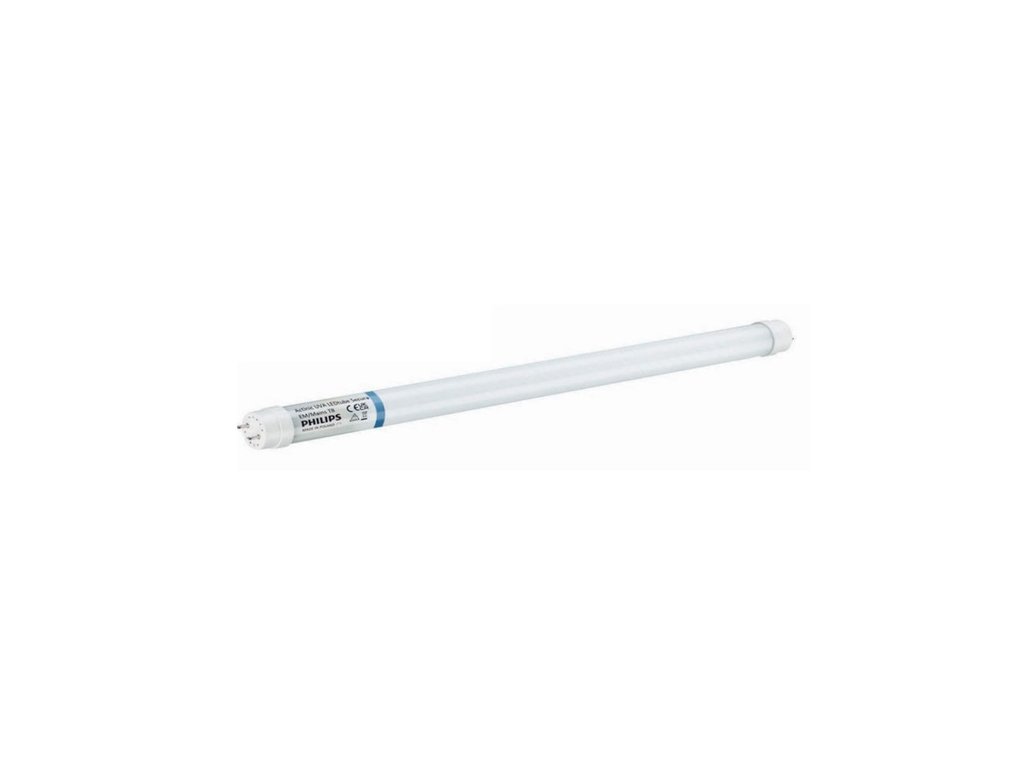

Actinic UVA LEDtube 5W 450 Secura 230V náhrada za TL-D 15W/10

Detailní popis produktu

Lamp specification
General Information
Range of light UV-A
Type Linear T8 tube
Electrical supply Mains voltage
Connector G13
Key applications Insect trap
Electrical Characteristics
Input voltage 220 – 240VAC
Input current 30mA, 35mA max
Power consumption 5W, 6W max
Power factor (direct mains supply) > 0.85
Energy consumption (8kh per year) 40 kWh
Lamp connections Option 1: Retrofit. 1 or 2 LEDtubes connected in series to EM
ballast and combined with Master LED tube starter which can
be purchased separately. (*)
Option 2: Direct connection to mains voltage
Number of on/off switches > 20k
Optical Characteristics
Peak wavelength 360 - 370 nm
Lifetime 25,000 hours @ 25°C
Environmental Conditions
Operation ambient temperature 25°C, min. –10°C, max. 35°C
Humidity max. 75%
Mechanical Characteristics
Lamp dimensions See below diagram
Weight 100g
Certificates and Standards
ROHS/Reach compliant yes
Approval marks CE / UKCA
Dimensions (mm)
Product D (max) A (max) B (max) B (min) C (max)
Actinic UV-A LEDtube
EM/Mains T8 Secura 28 437.4 444.5 442.1 451.6
Order Code: 9278 988 11001
Packing Type: Individual carton sleeve,
with 20 packs per outer box.
(*) MASTER LEDtube Starter EMP GenIII , which is used for retrofit
replacements, can be purchased separately [order code 929003481702]
