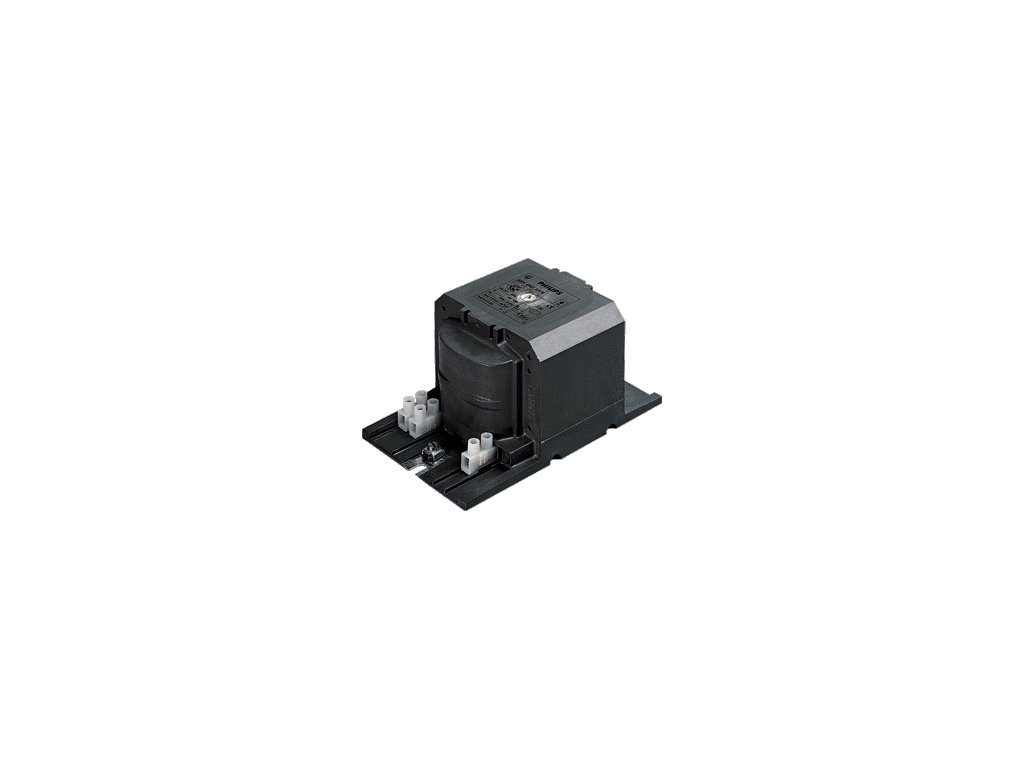

BSN 400 L33 Elektromagnetický předřadník Philips
Kód: 871150005976530 / 913700226926Detailní popis produktu
General Characteristics
| Application code | L33 |
| Design | HD3-166 |
| Rated Lamptype | SON |
| Rated Number of Lamps | 1 piece |
| Rated Ballast-Lamp Power | 400 |
| Line Voltage | 230 V |
| Line Frequency | 50 Hz |
Operating Characteristics
| Mains voltage safety (AC) | -10%/+10% |
| Mains voltage performance (AC) | -8%/+6% |
| Input current with PF-correct. | 2.20 A |
| Input current w/o PF-correct. | 4.45 A |
| Power losses gear | 29.0 W |
| PowerFactor 100% output power | 0.87 - |
| PowerFactor w/o PF compens. | 0.40 - |
Wiring Characteristics
| Connector type | Screw |
| Striplength | 7.0 mm |
| Wcs Ballast contacts | 0.70-6.00 mm2 |
Temperature Characteristics
| Active temperature protection | No |
| T-storage | -30 (min), 130 (max) C |
| T-winding maximum (tw) | 130 (max) C |
| Delta-T normal conditions | 70 C |
Product Dimensions
| Length A1 | 166.0 mm |
| Fixing Hole Distance Length A2 | 147.5 mm |
| Width B1 | 102.0 mm |
| Height C1 | 84.0 mm |
| Fixing Hole Diameter D1 | 6.2 mm |
Approval & Application Chars
| CE marking | Yes |
| ENEC certificate | Yes |
Product Data
| Order code | 913623090426 |
| Full product code | 913623090426 |
| Full product name | BSN 400 L33 230V 50Hz HD3-166 |
Doplňkové parametry
| Kategorie: | HID-Basic BSN/BMH |
|---|---|
| Záruka: | 2 roky |
