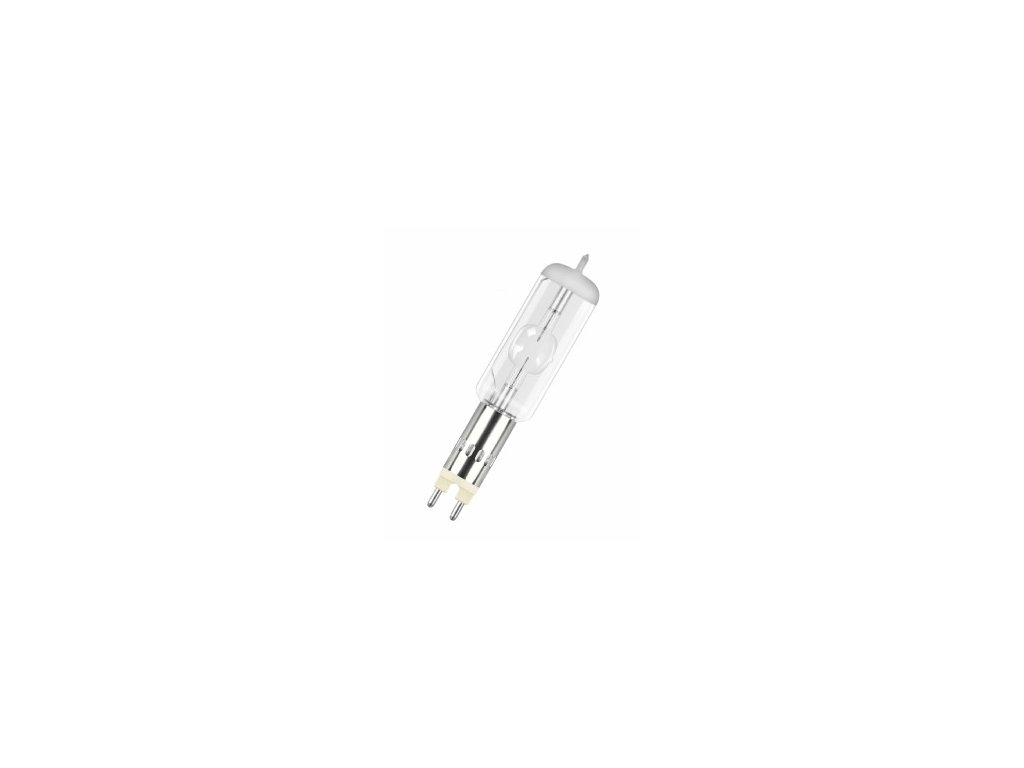

HMI 12000/SE XS 6000K GX38 Osram
Kód: 4050300650418 / HMI 12000/SE XSDetailní popis produktu
General product information |
|
|---|---|
| Product Number | 54113 |
| Product Name | HMI12000WSEXS 160V 1/CS 1/SKU |
| Ordering Abbreviation | HMI 12000W/SE/XS |
| Brand Name | OSRAM |
| General Description | 12000 watt, metal halide, single-ended, 6,000K |
| Application | Film, TV & Video Production. Studio Ltg |
| Product Remark |
|
Electrical data |
|
|---|---|
| Nominal Wattage | 12000 W |
| Nominal Voltage | 160 V |
| Current (A) | 84 A |
| Type of Current | AC |
Light technical data |
|
|---|---|
| Luminous Flux | 1150000 lm |
| Luminous Efficacy (lm/W) | 96 lm/W |
| Light Center Length - LCL (mm) | 255 mm |
| Color Temperature | 6000 K |
| Color Rendering Index | 90 |
| Average Rated Life | 500 h |
Physical attributes |
|
|---|---|
| Base | GX38 |
| Bulb Shape | T31 |
| Maximum Overall Length (mm) | 450 mm |
| Length l (mm) | 450 mm |
| Length l max. (mm) | 450 mm |
| Diameter d (in) | 3.937 in |
| Diameter d (mm) | 100.00 mm |
| Distance a (mm) | 255 mm |
| Electrode Gap - cold (mm) | 27 mm |
| Reflector Coating | 100.00 |
Additional product data |
|
|---|---|
| Operating Position | s 135 |
| Maximum Base Temperature (ºC) | 450 C |
| Cooling | Convection |
| Hot Restart | Yes |
| Class | C (gas) |
| Method of Operation | SINGLE-END |
Doplňkové parametry
| Kategorie: | GX38 |
|---|---|
| Záruka: | 2 roky |
| EAN: | 4050300650418 |
