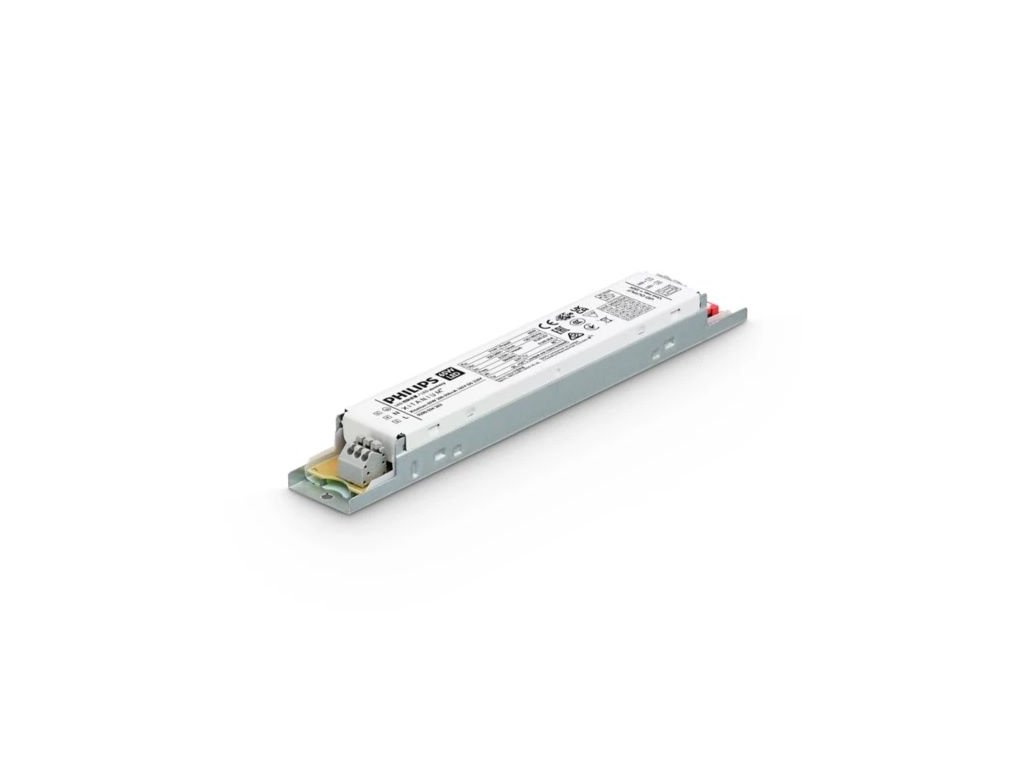

Philips Xi 65W 200-350mA 185V DS 230V EL G5

Detailní popis produktu

• Output Current Ripple (Max)
  4 %
• Output Current (Max)
  350 mA
• Open Circuit Voltage (DC) (Max)
  220 V
• Input current (AC)
  300 mA
• Input current (DC)
  90
• Inrush Current Peak (Max)
  38.4 A
• Inrush Current Peak (Nom)
  38.4 A
• Output Power (Max)
  64.75 W
• Default output current
  350 mA
• Inrush Current Width to 50% of Peak
  141 µs
• Energy Metering
  No
• Constant Current (CC)
  True
• Constant Voltage (CV)
  False
• Diagnostics
  False
• Output Power (Min)
  24 W
• Output Current (Min)
  200 mA
• Output Voltage (Max)
  185 V
• Output Voltage (Min)
  120 V
• Protection class IEC
  Safety class I
• Adjustable Output Current
  DipSwitch
• Product Length
  168 mm
• Overall length
  168 mm
• Overall width
  30 mm
• Overall height
  21 mm
• Dimensions (Height x Width x Depth)
  21 x 30 x 168 mm
• Ingress protection code
  IP20 [Finger-protected]
• Net Weight (Piece)
  0.113 kg
