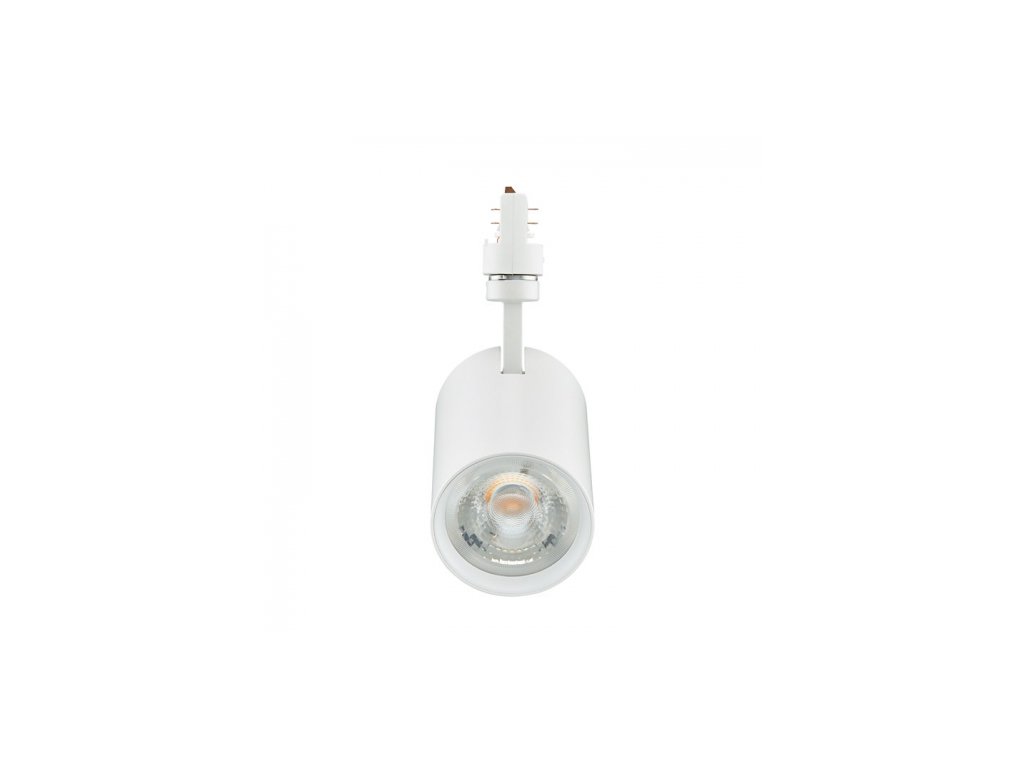

ST151T LED30S/930 MB WH 3000Lm 25D CoreLine Projector gen3 Philips

Kód: 871951452857499 / 911401846782
Neohodnoceno
Značka: Philips
2 057 Kč –20 %
ST151T LED30S/930 MB WH 3000Lm 25D CoreLine Projector gen3 Philips
2 057 Kč –20 % 1 645 Kč 1 360 Kč bez DPH
3-10 dnů
Můžeme doručit do:
11.6.2024
871951452857499 / 911401846782 Projektor, vyzařovací úhel 25°, nestmívatelný, bílá barva, Ra>90.

Detailní informace

Detailní popis produktu

General Information
Beam angle of light source
25 °
Light source color
930 warm white and 965 cool daylight
Light source replaceable
No
Number of gear units
1 unit
Driver/power unit/transformer
Power supply unit
Driver included
Yes
Optic type
Beam angle 25°
Luminaire light beam spread
25°
Control interface
-
Connection
Track
Cable
-
Protection class IEC
Safety class I
Glow-wire test
Temperature 650 °C, duration 30 s
Flammability mark
-
CE mark
CE mark
ENEC mark
ENEC mark
Warranty period
5 years
Constant light output
Yes
Number of products on MCB of 16 A type B
30
Photobiological risk
Photobiological risk group 0 @ 200mm to EN62471
Photobiological risk specification
0.2 m
EU RoHS compliant
Yes
Unified glare rating CEN
19
Light Technical
Saturated Red (R9)
>50
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 or 60 Hz
Initial CLO power consumption
30 W
Average CLO power consumption
30 W
Inrush current
43.8 A
Inrush time
0.0115 ms
Power Factor (Min)
0.9
Controls and Dimming
Dimmable
No
Mechanical and Housing
Housing Material
Aluminum
Reflector material
-
Optic material
Polycarbonate
Optical cover/lens material
Polycarbonate
Fixation material
-
Optical cover/lens finish
-
Overall length
207 mm
Overall width
87 mm
Overall height
125 mm
Overall diameter
80 mm
Color
White
Dimensions (Height x Width x Depth)
125 x 87 x 207 mm (4.9 x 3.4 x 8.1 in)
Approval and Application
Ingress protection code
IP20  [ Finger-protected]
Mech. impact protection code
IK03  [ 0.3 J]
Initial Performance (IEC Compliant)
Initial luminous flux (system flux)
100 lm
Luminous flux tolerance
+/-10%
Initial LED luminaire efficacy
3000 lm/W
Init. Corr. Color Temperature
3000 K
Init. Color Rendering Index
>90
Initial chromaticity
(0.4355, 0.4045) SDCM <4
Initial input power
30 W
Power consumption tolerance
+/-10%
Over Time Performance (IEC Compliant)
Control gear failure rate at median useful life 50000 h
0.05 %
Lumen maintenance at median useful life* 50000 h
L70
Application Conditions
Ambient temperature range
-20 to +40 °C
Performance ambient temperature Tq
25 °C
Maximum dim level
Not applicable
Suitable for random switching
No
Product Data
Full product code
871951452857499
Order product name
ST151T LED30S/930 MB WH
EAN/UPC - Product
8719514528574
Order code
911401846782
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
10
Material Nr. (12NC)
911401846782
Net Weight (Piece)
0.510 kg

Doplňkové parametry

Kategorie: ST151T
Záruka: 2 roky
