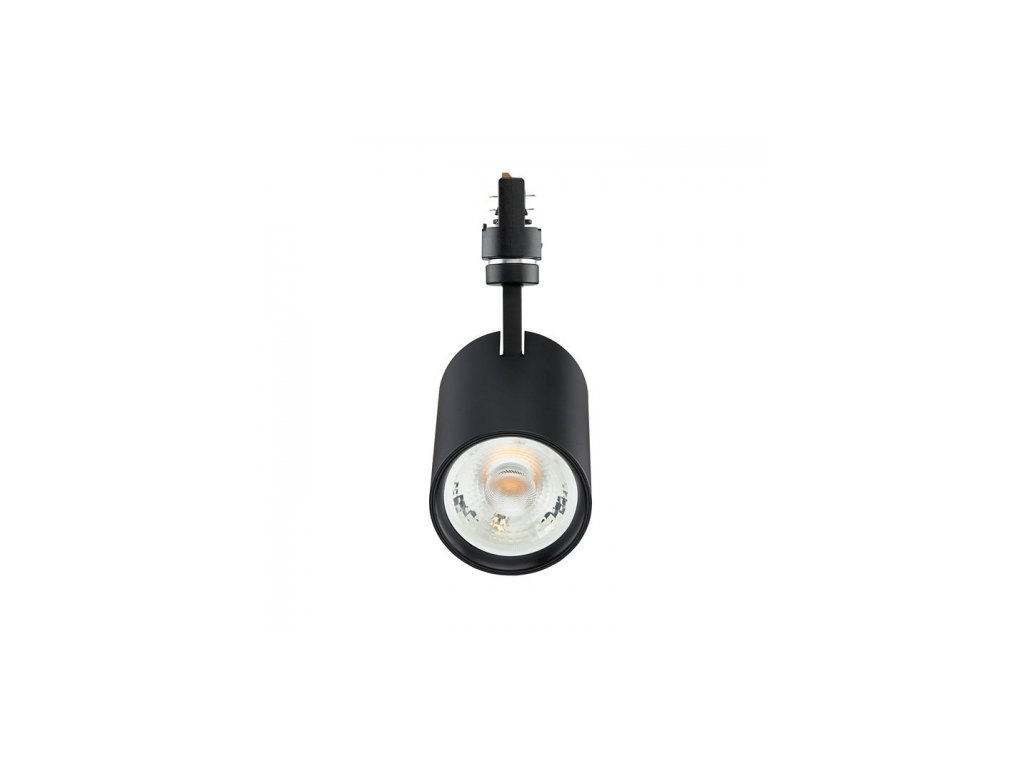

ST151T LED30S/940 MB BK 3000Lm 25D CoreLine Projector gen3 Philips
Kód: 871951452856799 / 911401846682Detailní popis produktu
General Information
Beam angle of light source
25 °
Light source color
940 neutral white
Light source replaceable
No
Number of gear units
1 unit
Driver/power unit/transformer
Power supply unit
Driver included
Yes
Optic type
Beam angle 38°
Luminaire light beam spread
25°
Control interface
-
Connection
Track
Cable
-
Protection class IEC
Safety class I
Glow-wire test
Temperature 650 °C, duration 30 s
Flammability mark
-
CE mark
CE mark
ENEC mark
ENEC mark
Warranty period
5 years
Constant light output
Yes
Number of products on MCB of 16 A type B
30
Photobiological risk
Photobiological risk group 0 @ 200mm to EN62471
Photobiological risk specification
0.2 m
EU RoHS compliant
Yes
Unified glare rating CEN
20
Light Technical
Saturated Red (R9)
>50
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 or 60 Hz
Initial CLO power consumption
27 W
Average CLO power consumption
27 W
Inrush current
43.8 A
Inrush time
0.0115 ms
Power Factor (Min)
0.9
Controls and Dimming
Dimmable
No
Mechanical and Housing
Housing Material
Aluminum
Reflector material
-
Optic material
Polycarbonate
Optical cover/lens material
Polycarbonate
Fixation material
-
Optical cover/lens finish
-
Overall length
207 mm
Overall width
87 mm
Overall height
125 mm
Overall diameter
80 mm
Color
Black
Dimensions (Height x Width x Depth)
125 x 87 x 207 mm (4.9 x 3.4 x 8.1 in)
Approval and Application
Ingress protection code
IP20 [ Finger-protected]
Mech. impact protection code
IK03 [ 0.3 J]
Initial Performance (IEC Compliant)
Initial luminous flux (system flux)
110 lm
Luminous flux tolerance
+/-10%
Initial LED luminaire efficacy
3000 lm/W
Init. Corr. Color Temperature
4000 K
Init. Color Rendering Index
>90
Initial chromaticity
(0.3837, 0.3828) SDCM <4
Initial input power
27 W
Power consumption tolerance
+/-10%
Over Time Performance (IEC Compliant)
Control gear failure rate at median useful life 50000 h
0.05 %
Lumen maintenance at median useful life* 50000 h
L70
Application Conditions
Ambient temperature range
-20 to +40 °C
Performance ambient temperature Tq
25 °C
Maximum dim level
Not applicable
Suitable for random switching
No
Product Data
Full product code
871951452856799
Order product name
ST151T LED30S/940 MB BK
EAN/UPC - Product
8719514528567
Order code
911401846682
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
10
Material Nr. (12NC)
911401846682
Net Weight (Piece)
0.510 kg
Beam angle of light source |
25 °
|
Light source color |
940 neutral white
|
Light source replaceable |
No
|
Number of gear units |
1 unit
|
Driver/power unit/transformer |
Power supply unit
|
Driver included |
Yes
|
Optic type |
Beam angle 38°
|
Luminaire light beam spread |
25°
|
Control interface |
-
|
Connection |
Track
|
Cable |
-
|
Protection class IEC |
Safety class I
|
Glow-wire test |
Temperature 650 °C, duration 30 s
|
Flammability mark |
-
|
CE mark |
CE mark
|
ENEC mark |
ENEC mark
|
Warranty period |
5 years
|
Constant light output |
Yes
|
Number of products on MCB of 16 A type B |
30
|
Photobiological risk |
Photobiological risk group 0 @ 200mm to EN62471
|
Photobiological risk specification |
0.2 m
|
EU RoHS compliant |
Yes
|
Unified glare rating CEN |
20
|
Saturated Red (R9) |
>50
|
Input Voltage |
220 to 240 V
|
Input Frequency |
50 or 60 Hz
|
Initial CLO power consumption |
27 W
|
Average CLO power consumption |
27 W
|
Inrush current |
43.8 A
|
Inrush time |
0.0115 ms
|
Power Factor (Min) |
0.9
|
Dimmable |
No
|
Housing Material |
Aluminum
|
Reflector material |
-
|
Optic material |
Polycarbonate
|
Optical cover/lens material |
Polycarbonate
|
Fixation material |
-
|
Optical cover/lens finish |
-
|
Overall length |
207 mm
|
Overall width |
87 mm
|
Overall height |
125 mm
|
Overall diameter |
80 mm
|
Color |
Black
|
Dimensions (Height x Width x Depth) |
125 x 87 x 207 mm (4.9 x 3.4 x 8.1 in)
|
Ingress protection code |
IP20 [ Finger-protected]
|
Mech. impact protection code |
IK03 [ 0.3 J]
|
Initial luminous flux (system flux) |
110 lm
|
Luminous flux tolerance |
+/-10%
|
Initial LED luminaire efficacy |
3000 lm/W
|
Init. Corr. Color Temperature |
4000 K
|
Init. Color Rendering Index |
>90
|
Initial chromaticity |
(0.3837, 0.3828) SDCM <4
|
Initial input power |
27 W
|
Power consumption tolerance |
+/-10%
|
Control gear failure rate at median useful life 50000 h |
0.05 %
|
Lumen maintenance at median useful life* 50000 h |
L70
|
Ambient temperature range |
-20 to +40 °C
|
Performance ambient temperature Tq |
25 °C
|
Maximum dim level |
Not applicable
|
Suitable for random switching |
No
|
Full product code |
871951452856799
|
Order product name |
ST151T LED30S/940 MB BK
|
EAN/UPC - Product |
8719514528567
|
Order code |
911401846682
|
Numerator - Quantity Per Pack |
1
|
Numerator - Packs per outer box |
10
|
Material Nr. (12NC) |
911401846682
|
Net Weight (Piece) |
0.510 kg
|
