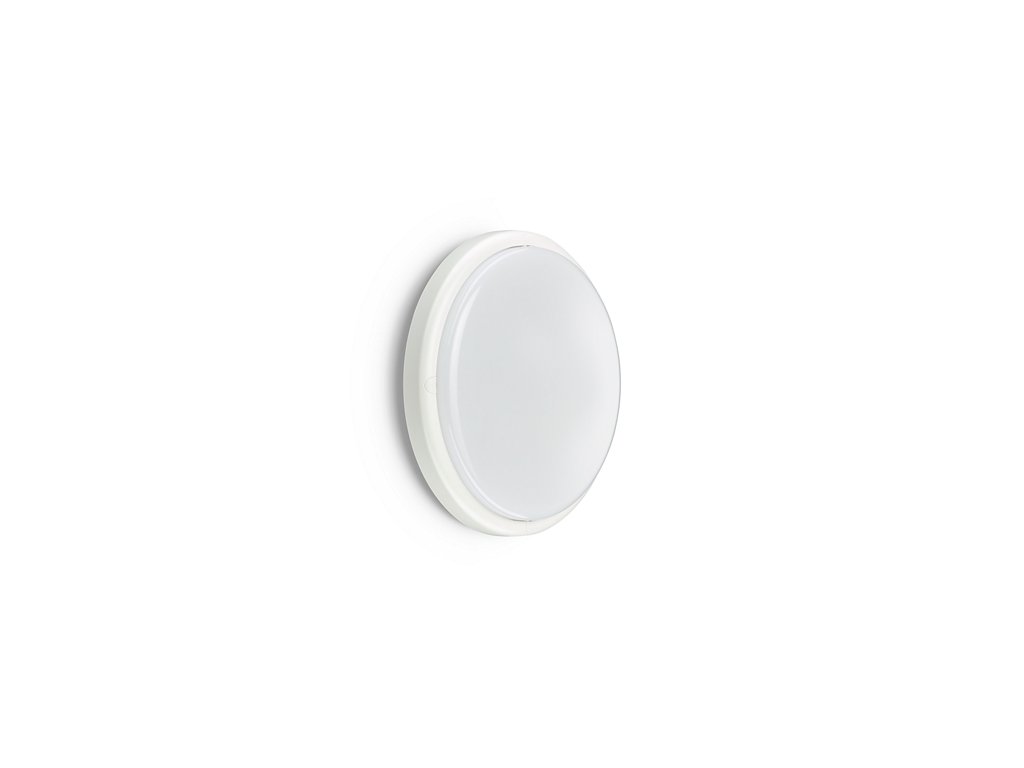

WL070V LED17S/840 PSU II WH 1700Lm 4000K LEDINAIRE LED svítidlo nástěnné Philips
Kód: 871951452269599 / 911401826682Detailní popis produktu
| Beam angle of light source |
120 °
|
| Light source color |
840 neutral white
|
| Light source replaceable |
No
|
| Number of gear units |
1 unit
|
| Driver/power unit/transformer |
Power supply unit
|
| Driver included |
Yes
|
| Optic type |
Symmetrical
|
| Luminaire light beam spread |
120° x 120°
|
| Control interface |
-
|
| Connection |
Push-in connector 3-pole
|
| Cable |
-
|
| Protection class IEC |
Safety class II
|
| Glow-wire test |
Temperature 850 °C, duration 30 s
|
| Flammability mark |
For mounting on normally flammable surfaces
|
| CE mark |
CE mark
|
| ENEC mark |
-
|
| Warranty period |
3 years
|
| Constant light output |
No
|
| Number of products on MCB of 16 A type B |
32
|
| Photobiological risk |
Photobiological risk group 0 @ 200mm to EN62471
|
| EU RoHS compliant |
Yes
|
| Unified glare rating CEN |
22
|
| Input Voltage |
220 to 240 V
|
| Input Frequency |
50 or 60 Hz
|
| Initial CLO power consumption |
17 W
|
| Average CLO power consumption |
- W
|
| Inrush current |
20 A
|
| Inrush time |
0.04 ms
|
| Power Factor (Min) |
0.9
|
| Dimmable |
No
|
| Housing Material |
Polycarbonate
|
| Reflector material |
-
|
| Optic material |
Polycarbonate
|
| Optical cover/lens material |
Polycarbonate
|
| Fixation material |
-
|
| Optical cover/lens finish |
Opal
|
| Overall height |
64 mm
|
| Overall diameter |
285 mm
|
| Color |
White RAL 9003
|
| Dimensions (Height x Width x Depth) |
64 x NaN x NaN mm (2.5 x NaN x NaN in)
|
| Ingress protection code |
IP65 [ Dust penetration-protected, jet-proof]
|
| Mech. impact protection code |
IK08 [ 5 J vandal-protected]
|
| Initial luminous flux (system flux) |
1700 lm
|
| Luminous flux tolerance |
+/-10%
|
| Initial LED luminaire efficacy |
100 lm/W
|
| Init. Corr. Color Temperature |
4000 K
|
| Init. Color Rendering Index |
>80
|
| Initial chromaticity |
(0.3818, 0.3797)SDCM ≤5
|
| Initial input power |
17 W
|
| Power consumption tolerance |
+/-10%
|
| Control gear failure rate at median useful life 50000 h |
2.5 %
|
| Lumen maintenance at median useful life* 50000 h |
L70
|
| Ambient temperature range |
-20 to +40 °C
|
| Performance ambient temperature Tq |
25 °C
|
| Maximum dim level |
Not applicable
|
| Suitable for random switching |
Not applicable
|
| Full product code |
871951452269599
|
| Order product name |
WL070V LED17S/840 PSU II WH
|
| EAN/UPC - Product |
8719514522695
|
| Order code |
911401826682
|
| Numerator - Quantity Per Pack |
1
|
| Numerator - Packs per outer box |
6
|
| Material Nr. (12NC) |
911401826682
|
| Net Weight (Piece) |
0.780 kg
|
Doplňkové parametry
| Kategorie: | WL070V |
|---|---|
| Záruka: | 2 roky |
| EAN: | 8719514522695 |
