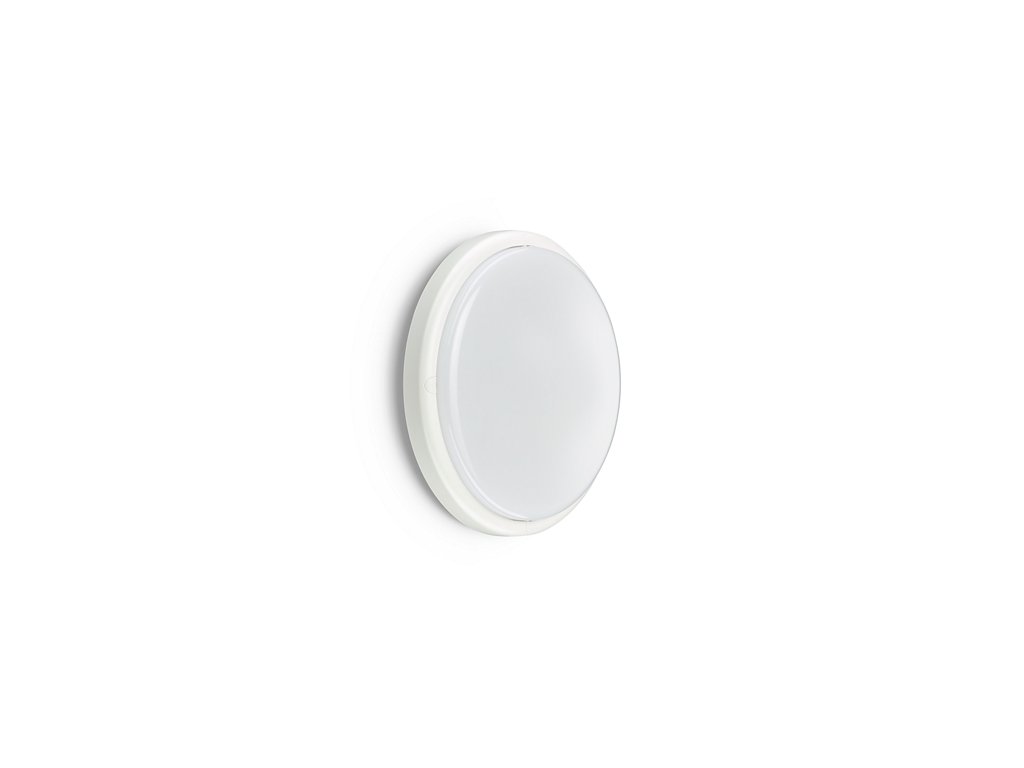

WL070V LED17S/840 PSU II WH 1700Lm 4000K LEDINAIRE LED svítidlo nástěnné Philips

Kód: 871951452269599 / 911401826682
Neohodnoceno
Značka: Philips
1 156 Kč –30 %
WL070V LED17S/840 PSU II WH 1700Lm 4000K LEDINAIRE LED svítidlo nástěnné Philips
1 156 Kč –30 % 809 Kč 669 Kč bez DPH
Skladem
Můžeme doručit do:
29.5.2024
871951452269599 / 911401826682 Nástěnné/stropní svítidlo, kulaté Ø 285 mm, IK08, možnost smyčkování, PC kryt.

Detailní informace

Detailní popis produktu

General Information
Beam angle of light source
120 °
Light source color
840 neutral white
Light source replaceable
No
Number of gear units
1 unit
Driver/power unit/transformer
Power supply unit
Driver included
Yes
Optic type
Symmetrical
Luminaire light beam spread
120° x 120°
Control interface
-
Connection
Push-in connector 3-pole
Cable
-
Protection class IEC
Safety class II
Glow-wire test
Temperature 850 °C, duration 30 s
Flammability mark
For mounting on normally flammable surfaces
CE mark
CE mark
ENEC mark
-
Warranty period
3 years
Constant light output
No
Number of products on MCB of 16 A type B
32
Photobiological risk
Photobiological risk group 0 @ 200mm to EN62471
EU RoHS compliant
Yes
Unified glare rating CEN
22
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 or 60 Hz
Initial CLO power consumption
17 W
Average CLO power consumption
- W
Inrush current
20 A
Inrush time
0.04 ms
Power Factor (Min)
0.9
Controls and Dimming
Dimmable
No
Mechanical and Housing
Housing Material
Polycarbonate
Reflector material
-
Optic material
Polycarbonate
Optical cover/lens material
Polycarbonate
Fixation material
-
Optical cover/lens finish
Opal
Overall height
64 mm
Overall diameter
285 mm
Color
White RAL 9003
Dimensions (Height x Width x Depth)
64 x NaN x NaN mm (2.5 x NaN x NaN in)
Approval and Application
Ingress protection code
IP65  [ Dust penetration-protected, jet-proof]
Mech. impact protection code
IK08  [ 5 J vandal-protected]
Initial Performance (IEC Compliant)
Initial luminous flux (system flux)
1700 lm
Luminous flux tolerance
+/-10%
Initial LED luminaire efficacy
100 lm/W
Init. Corr. Color Temperature
4000 K
Init. Color Rendering Index
>80
Initial chromaticity
(0.3818, 0.3797)SDCM ≤5
Initial input power
17 W
Power consumption tolerance
+/-10%
Over Time Performance (IEC Compliant)
Control gear failure rate at median useful life 50000 h
2.5 %
Lumen maintenance at median useful life* 50000 h
L70
Application Conditions
Ambient temperature range
-20 to +40 °C
Performance ambient temperature Tq
25 °C
Maximum dim level
Not applicable
Suitable for random switching
Not applicable
Product Data
Full product code
871951452269599
Order product name
WL070V LED17S/840 PSU II WH
EAN/UPC - Product
8719514522695
Order code
911401826682
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
6
Material Nr. (12NC)
911401826682
Net Weight (Piece)
0.780 kg

Doplňkové parametry

Kategorie: WL070V
Záruka: 2 roky
